OT Pendants

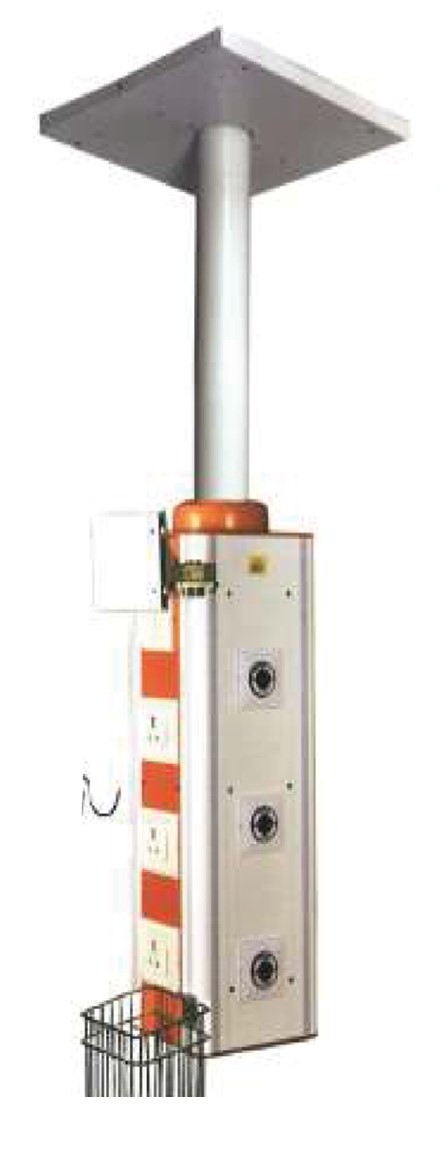

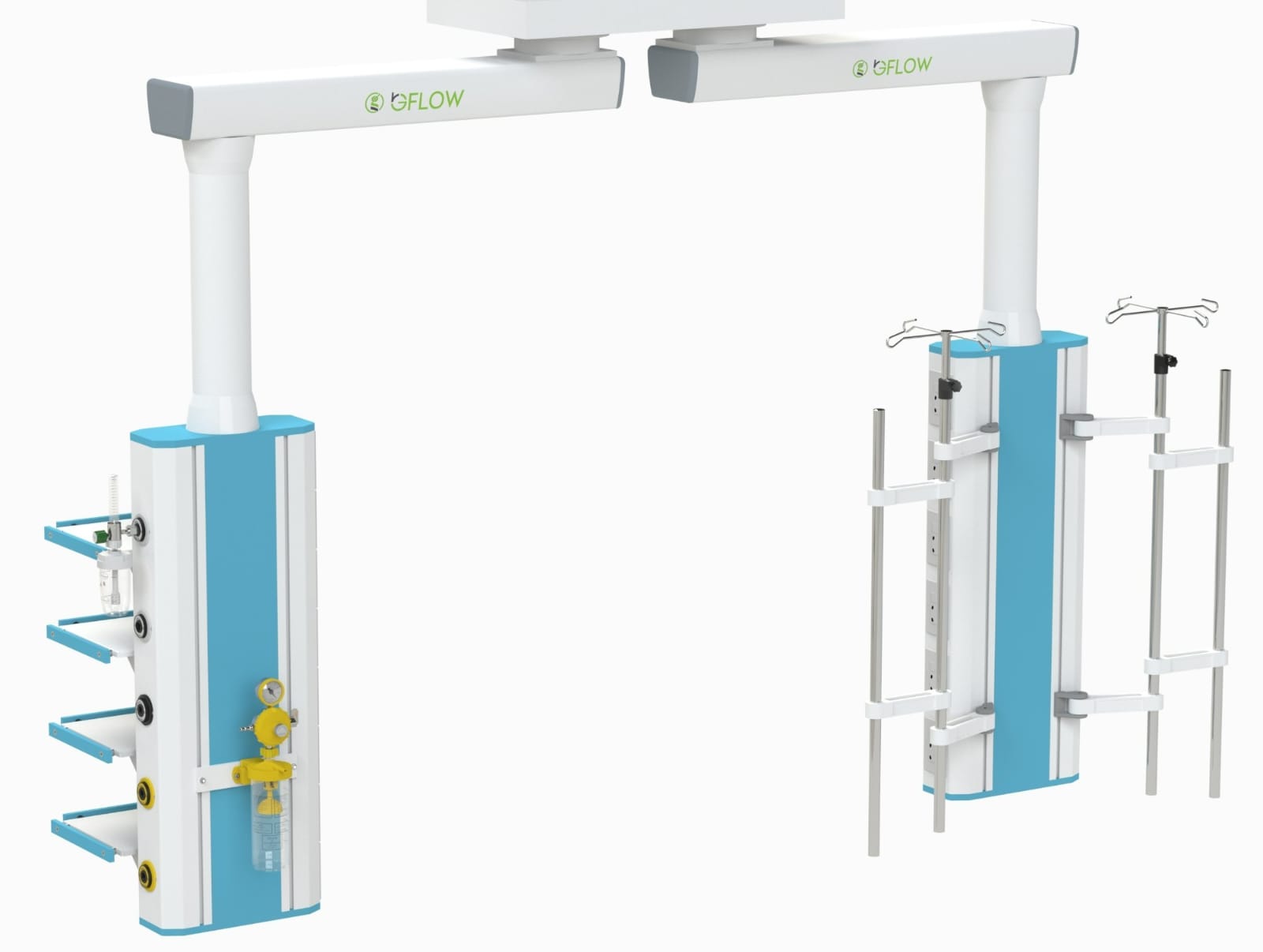

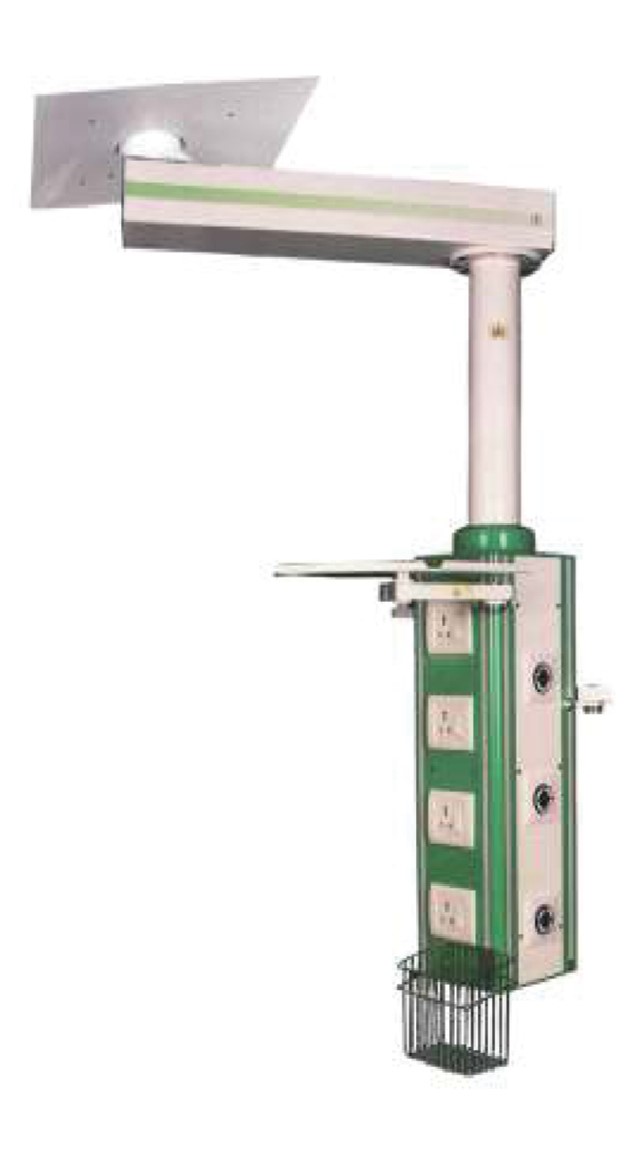

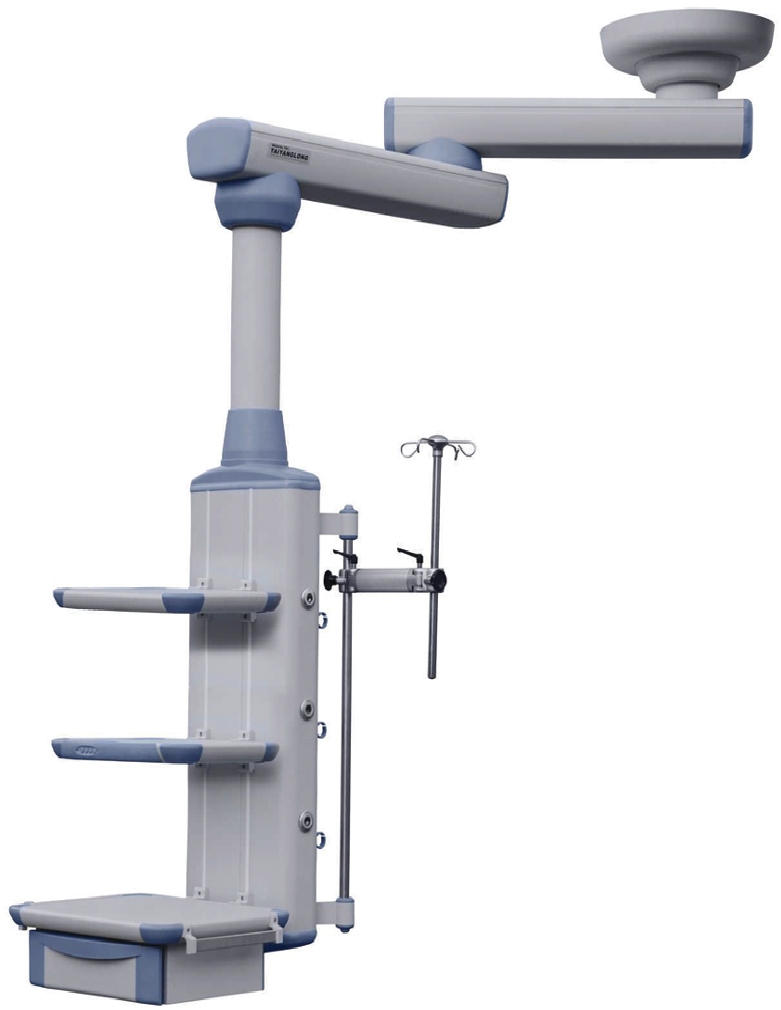

OT / ICU Pendants
Pendants made up of a 3mmaluminum 6063 T6 Tempered Alloy Extruded body with the following features.
- a. Customise choice Make Medical Gas Terminal Units with probe (O2, N2O, Air-4 Bar, Air-7 Bar, CO2, Vac-no, and AGSS)
- b. Customise choice Make 6/16 amps Electrical Switch and Socket (Internal Wiring with 1.5 sq. mm wire)
- c. 2 No movable type Tray (60 Kg Loading Capacity of Each Tray) (Tray Size-500 mm X 400 mm X 25mm)
- d. 1 no of Aluminum Extruded Drawer
- e. 1 no IV Pole with 4 no hooks
- f. 1 no of RJ45 Point (Data Point)
- g. 11 mm thickness, 800 + 800 mm Length arm with ABS end caps
- h. 1200mm Length Distribution Column
- i. Antibacterial Powder coating
- j. Anti-static High-Pressure hose for Internal Gas
- k. Separate compartment for Electrical and Gas outlet
- l. Canopy to cover the false ceiling (400 mm x 400mm)
- m. The arm and console are 330 degrees rotatable
- n. As per height of the ceiling and false ceiling height, Fixtures are made to fix the Base Flange, Pipe connectors, and fasteners
