Crash Railing For Hospitals

Product name Wall Protective Plastic Handrail/Aluminum balustrade
Model No AA-618 Series

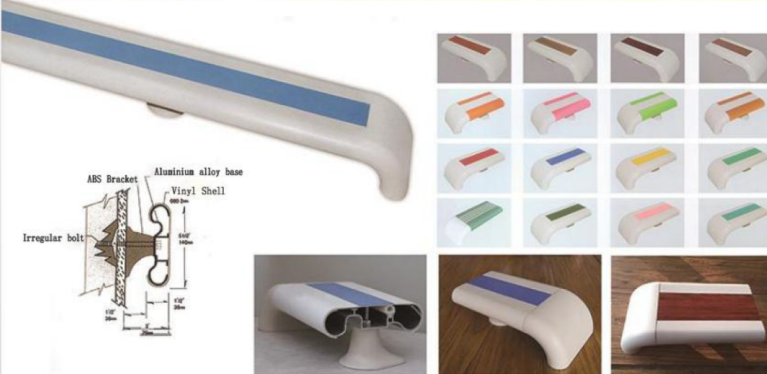

Structure Surface Vinyl panel + inner aluminum + ABS elbow (symmetrical/connected) + ABS support + Plug + Screw
Vinyl Particle Composition Vinyl: 63.5%, Caco3: 21%, DOP: 3%, CPE: 4%, Stabilizer: 2.5%, ACR: 1.5%, Acrylic: 10%
Width Vinyl Panel: 140mm
Thickness Vinyl panel: 2.0mm
Aluminum: 1.2mm / 1.4mm / 1.6mm / 1.8mm / 2.0mm
Configuration 1m handrail = 1pc elbow
0.6m handrail = 1pc bracket
1pc elbow = 1pc screw
1pc bracket = 1pc screw
Color As you request
Single color, double color, and four strip color
Wooden color
Blue, pink, and dark green in stock
Weight Panel: 0.69kg/m
Aluminum A: 0.83kg/m (1.4mm), 0.98kg/m (1.6mm), 1.26kg/m (1.8mm), 1.3kg/m (2.0mm)
B: 0.9kg/m (1.6mm), 1.1kg/m (1.8mm)
Elbow: 0.12kg/pc
Bracket: 0.035kg/pc
Installation 76cm (from the ground)
38cm (from the wall)
